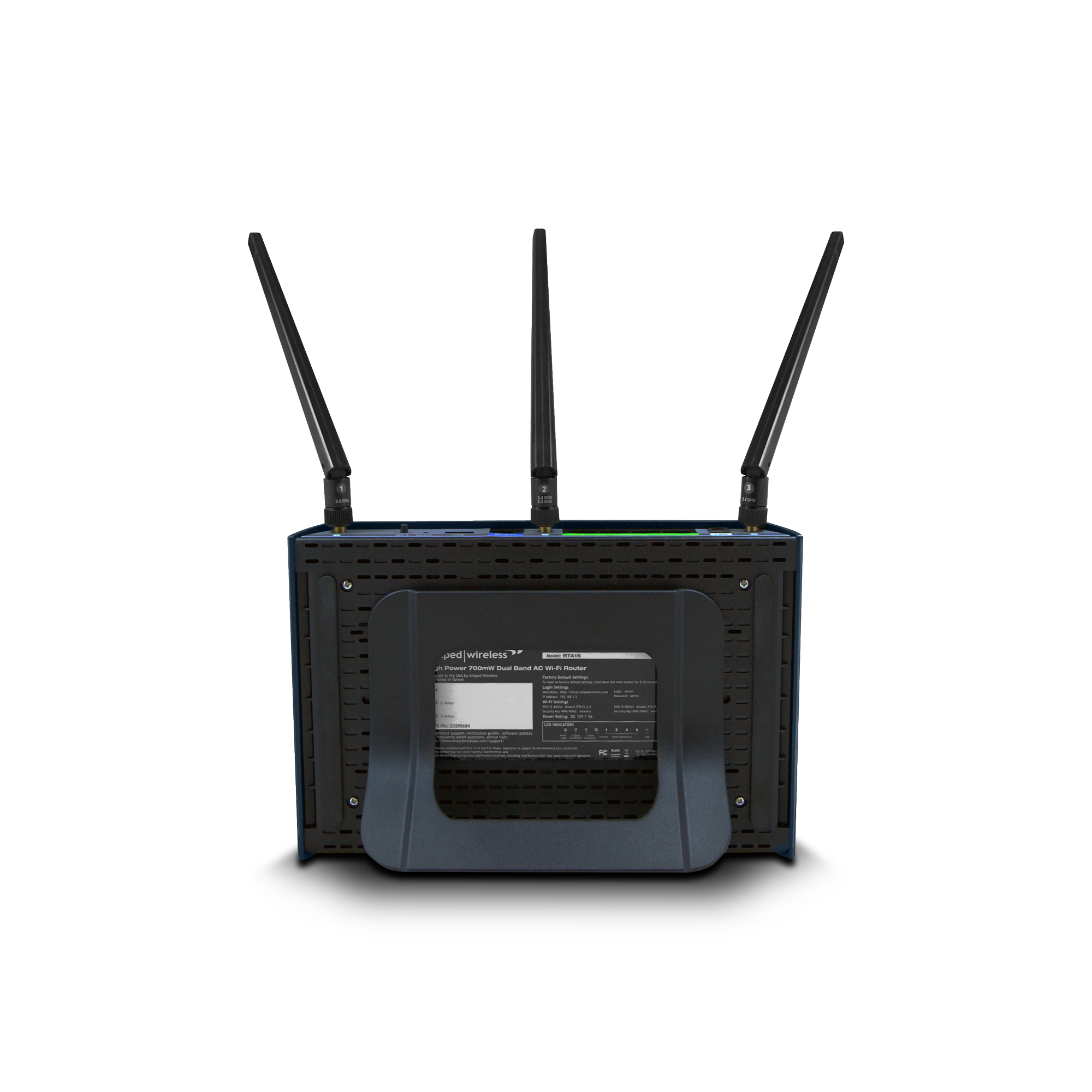

The Amped Wireless High Power 700mW Dual Band AC Wi-Fi Access Point adds long range, Wi-Fi access for existing wired networks or networks with older wireless technology. The APA20 is equipped with a total of ten amplifiers; two 2.4GHz amplifiers, four 5.0GHz amplifiers, and four low noise amplifiers. It also has three high gain antennas to provide extreme range, gigabit Wi-Fi coverage. The APA20 features double amplification with advanced 2-stage 5GHz amplifiers that ensure the longest range and the most coverage. This Access Point features an advanced internal processor, gigabit networking ports for blazing fast wired connections, a USB port for sharing files, and simultaneous dual band Wi-Fi access. Powered by 802.11ac Wi-Fi technology, the APA20 provides gigabit Wi-Fi speeds (AC1200: three times faster than 802.11n) with enough bandwidth to deliver multiple HD streams simultaneously to all of your Wi-Fi devices for next generation Wi-Fi access throughout your entire home, backyard, or office. Simple Plug and Play set up, makes setup as simple as connecting the Access Point to your router's network port. No software or additional steps needed.
Note: The APA20 is NOT a router. It is a High Power 700mW Dual Band AC Wi-Fi Access Point that attaches to your existing router.
Great for Large Homes and Offices
Give your home a better Wi-Fi signal that covers more square feet
Add powerful long range Wi-Fi to your entire office
Unleash your laptop, tablet, and smartphone in more places with full coverage Wi-Fi
Key Features
Up to 8,000 Sq Ft of Wi-Fi Coverage
Bring long range wireless Internet to your large home or office.
Ultra-Fast 802.11ac Wi-Fi Speeds
Experience more on multiple devices, simultaneously, with ultra-fast Wi-Fi transfer speeds.

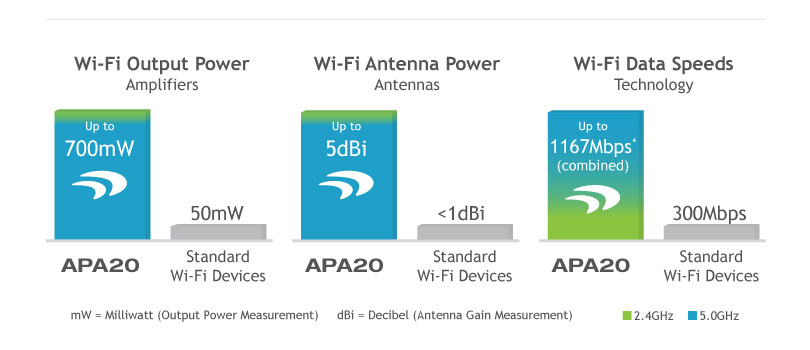

More Power and Better Wi-Fi Performance
Achieve maximum power with advanced 2-Stage amplifiers that boost your signal twice.
Penetrate Walls and Eliminate Dead Spots
Add more range with a dedicated single band 2.4GHz antenna, a dedicated 5.0GHz antenna and a dual band antenna.
Universal Wi-Fi Access Point
Compatible with any 802.11a/b/g/n/ac single or dual band Wi-Fi router or network.
More Connections for More Devices
Connect more PCs, A/V devices, servers and printers at gigabit speeds with 4 additional ports.
Share Files with USB
Attach a USB hard drive or flash drive to easily share files with networked computers.
Create Additional Networks
Add up to eight additional networks for guests and conference rooms.
AirPlay®, AirPrint™, & Home Sharing
Compatible with all Apple networking features and supported devices.
Smart Security and More Control
Restrict network access to specific users and set schedules for when your extended network is on or off.
Simply Plug and Play Setup
Connect the Access Point to your router's network port.
The Access Point will automatically configure itself to your network.
Connect to the Access Point wired or wirelessly. That's it!
Share Files with USB
Share files from your USB flash drive hard drive locally.

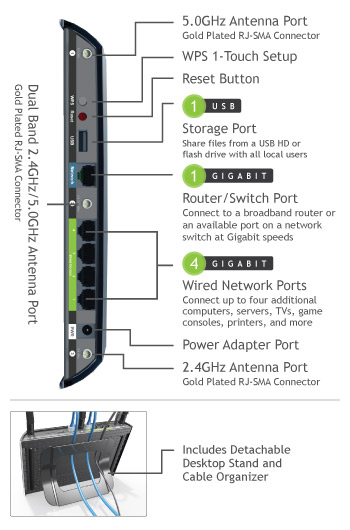

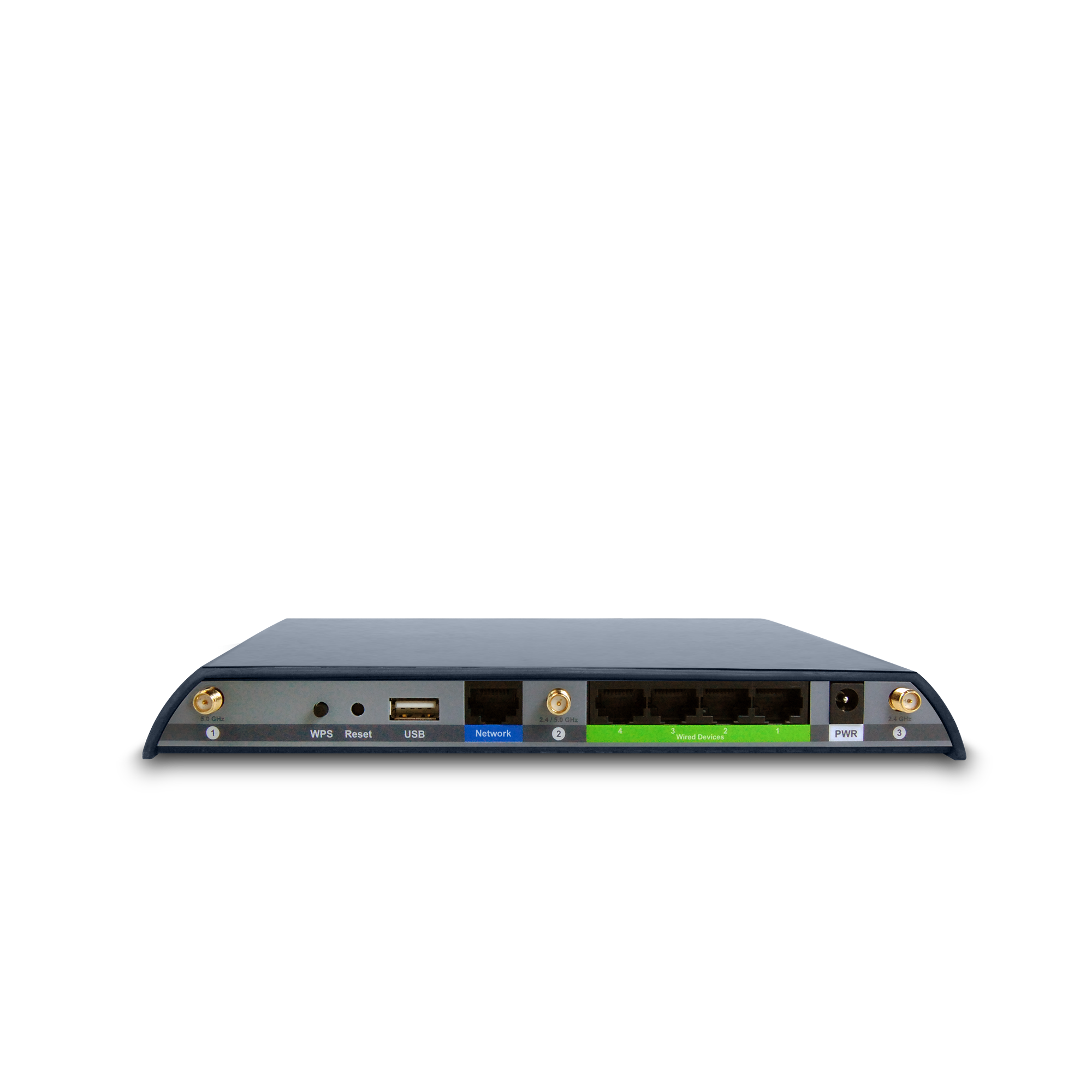

Connectors and Ports
Purchase the APA20 High Power 700mW Dual Band AC Wi-Fi Access Point:
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
May not work with non-standard Wi-Fi routers or routers with altered firmware, such as those from third party sources or those with proprietary software. May not work with routers that do not comply with IEEE standards.
AirPlay, AirPrint, Home Sharing are either registered trademarks or trademarks of Apple Inc. Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Make sure your computer is connected to the Access Point wirelessly and NOT using a network cable. Ensure the power is plugged in and on. Try to access the setup menu again.
Enter the following web address into your web browser instead of ‘setup.ampedwireless.com’: http://192.168.80.240
Power off (unplug the power adapter) the Access Point and power it back on. Try again.
Try to open your web browser to the default IP address by putting this number into your web browser instead: 192.168.80.240
Reset your Access Point to default settings by holding the Reset Button (located on the back panel) for ten (10) seconds and try again.
If you are using a Static IP, you will need to enter the assigned IP Address into the web browser to access the web menu. When using a Static IP, the setup.ampedwireless.com shortcut will no longer work.
Your router or original network may not have Internet access. First check to see if you are able to access the Internet by connecting directly with your router. If you cannot, there is a problem with your router that needs to be fixed first. If you are able to access the internet, continue with the following troubleshooting options below.
Your router may be using Static IP assignments. If so, you will need to configure a Static IP for the Access Point. Connect your PC to the Access Point using an Ethernet cable. Disconnect your PC from any wireless networks that it may be connected to. Access the web menu at setup.ampedwireless.com using a web browser. Access the IP settings menu from the left hand navigation bar. Select ‘Disable’ under the DHCP dropdown menu and enter an IP address that matches your router’s IP settings.
Detach the Access Point from your router and reset it back to default settings by holding down the reset button (red circle) on the back panel of the Access Point for 5-10 seconds. After it has reset, reattach it to your router’s network port. Allow up to 2 minutes for the Access Point to reconfigure itself to your network and attempt to access the Internet through the Access Point’s wired or wireless network.
The settings on your router’s network may have changed or you may have lost internet connection on your home router. Any changes to the DHCP settings of your home router may affect the Internet connection of the Access Point. Check the settings on your router and try again.
Reboot the Access Point by unplugging the power adapter and plugging it back in. Allow up to 2 minutes for the Access Point to reconfigure itself to your network. Check to see if your connection has been reestablished by viewing a website.
Double check that you are connected to the Access Point and not to your home router. Use an Ethernet cable and attach it between your computer and the Access Point. Disconnect your computer from all wireless networks and try to access the web menu again.
If you are advanced in networking troubleshooting, log onto your home router’s web interface. Look for the DHCP client list and try to find the IP address of your Access Point assigned by your home router. Once you have it, connect to the Access Point using an Ethernet cable. Open your web browser and enter the IP address into the address bar.
Reset the Access Point back to default settings and try the Basic Setup again. To reset the Access Point back to default settings, hold the Reset Button (on the back panel) down for five (5) to ten (10) seconds. After the Access Point has fully reset, use an Ethernet cable and connect to the Access Point. Log in to the web menu at http://setup.ampedwireless.com and reconfigure the settings for your Access Point.
You may be too far away from the wireless network. Wireless data transfer speeds degrade as distances increase between your computer and the Access Point.
You may be downloading from the Internet and not within your local network. Files transferred through the Internet are limited by your ISP speed and the data download speeds from the website that you are downloading from.
Your computer may be using an older Wi-Fi adapter with lower speed limits (802.11b/g/n). For maximum speeds, use 802.11ac Wi-Fi adapters.
You may have interference on the wireless channel that the Access Point is currently using. Try changing the channel of your wireless network.
Step back at least 10 feet from the Access Point and check your signal again. The Access Point emits high power, long range Wi-Fi signals that may confuse your wireless adapter signal reading at close range. The speed and signal are at 100%, however your readout may not be displaying the data correctly.
Check that your antennas are connected to their corresponding antenna connectors. The number designated on the antenna (1-3) should match the number on the antenna connector (1-3).
The wireless channel that your network is running on may be congested. Change the wireless channel on your Access Point.
Check to see that your wireless output settings are at 100%. Go to the web menu, Wireless Settings and check the Advanced Settings. Make sure the output power is at 100%.
Check that your antennas are connected to their corresponding antenna connectors. The number designated on the antenna (1-3) should match the number on the antenna connector (1-3).
Your Access Point may be installed in a poor location. Avoid setting up your Access Point in areas with high interference, such as near fridges, microwaves, metallic objects and low surfaces. Install the Access Point in a higher location if possible.
Adjust the Antennas of the Access Point in different angles.
Your wireless network adapter may be outdated and have older wireless technology not capable of achieving the wireless network speeds of the Access Point. To achieve maximum wireless speeds, it is required that you have a 802.11n (2.4GHz) or 802.11ac (5.0GHz) adapter.
Check that you are using the latest Wi-Fi security type: WPA or WPA2 WEP security may slow down your wireless speeds.
Check that the Access Point’s wireless data rate is set to AUTO or 11N (2.4GHz) and 11AC (5.0GHz) data rate speeds.
Wireless speeds degrade as you get further away from the Access Point.
Check that the wireless channel set on the Access Point is not crowded. Try changing the wireless channel to another channel and test the speed again.
The Access Point supports WPS connections, however, some companies may use proprietary code for their own push button configurations. Try connecting using the Windows wireless utility or Mac wireless utility instead.
Bring long range wireless Internet access to your home or office. Two 2.4GHz amplifiers, four 5.0GHz 2-Stage amplifiers, four low noise amplifiers, and three high gain antennas provide industry leading Wi-Fi power and coverage.

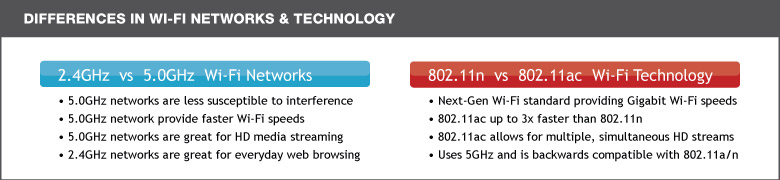

Ultra-fast 802.11ac Wi-Fi Speeds
Stream your HD videos onto multiple devices, simultaneously and at faster speeds. Next generation 802.11ac Wi-Fi technology provides Wi-Fi speeds up to three times faster than 802.11n. AC1200 Wi-Fi speeds provide up to 300Mbps 2.4GHz 802.11n connections and up to 867Mbps 5.0GHz 802.11ac connections simultaneously.

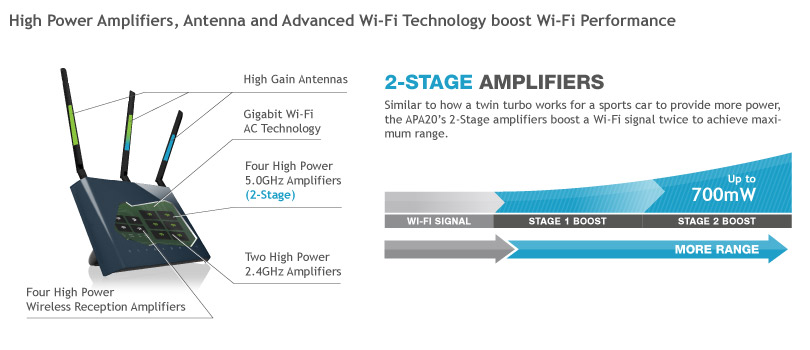

More Power and Better Wi-Fi Performance (2-Stage Amplifiers)
Similar to how a twin turbo works for a sports car to provide more power and speed, the APA20 features advanced 2-Stage amplifiers that boost a Wi-Fi signal twice to achieve maximum range and performance.
Penetrate Walls and Eliminate Dead Spots
Bring more range to your network and eliminate frustrating Wi-Fi dead spots with the APA20's industry leading technology. Enjoy a better Wi-Fi experience with a dedicated single band 2.4GHz, high gain 5dBi antenna, a dedicated 5.0GHz high gain 5dBi antenna, and a high gain dual band antenna.
More Available Connections for More Devices
Connect your office printer or other network devices with ease. The APA20 provides up to four 10/100/1000M network ports for connecting additional wired computers, A/V devices and other network devices at ultra-fast wired speeds.
Powerful Processor for Faster Networking
The APA20 features a powerful 660MHz internal processor for computing networking commands at blazing speeds which results in faster wired and wireless speeds.
Share Files with USB
Attach a USB storage device, such as an external hard drive or flash drive, to share at home or in the office with other networked computers.
Smart Security with More Control
You're in control! Smart security features allow you to restrict access to specific users, set a daily time schedule for when the wireless network is available and when it is not and control how far your wireless network coverage reaches through wireless output power adjustments. The APA20 also supports secure push button setup for WPS enabled devices.
Create Additional Networks
Give your home or office more Wi-Fi Networks to choose from by creating additional networks for guests and conference rooms.
Simple Plug & Play, No Setup Required
Getting started is simple. The APA20 connects to an available network port on your router and automatically configures itself to your network. There's no additional setup or software necessary.
Perfect for Large Homes and Offices
The high power Wi-Fi capabilities of the APA20 is great for providing powerful wireless coverage for larger homes, backyards, offices and warehouses.
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
May not work with non-standard Wi-Fi routers or routers with altered firmware, such as those from third party sources or those with proprietary software. May not work with routers that do not comply with IEEE standards.
AirPlay, AirPrint, Home Sharing are either registered trademarks or trademarks of Apple Inc. Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Add Long Range, Ultra-Fast Wi-Fi to an Existing Network (2.4 and/or 5.0GHz)
Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.
Improved stability and fixed error relating to connection drops with the router
Improved Wi-Fi stability and fixed Wi-Fi connection issues
Added Auto-Reboot feature that allows for scheduled system reboots
Added Network Time Protocol (NTP) option to system clock for syncing the time via the Internet
Important: Before upgrading firmware, always save your current settings from the Save/Reload Settings page. To access from the web menu: More Settings > Management > Save/Reload Settings> Save Settings to File After the firmware updates, load your saved settings to keep your existing configurations.
A router or network switch with an available network (LAN) port Computer with wired (RJ-45) or wireless (802.11a/b/g/n or ac) adapter
Package Contents:
1 x High Power 700mW Dual Band AC Wi-Fi Access Point 1 x Detachable High Gain 2.4GHz Antenna 1 x Detachable High Gain 5.0GHz Antenna 1 x Detachable High Gain Dual Band Antenna 1 x Power Adapter (100-240v) 1 x RJ-45 Ethernet Cable 1 x Setup Guide 1 x CD: Users Guide 1 x Desktop Stand / Cable Organizer
Specifications are subject to change without notice.
1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.
2 All transmission rates listed, for example 600Mbps for 2.4GHz and 1300Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the unit. AC2600 wireless speeds are achieved when connecting to other AC2600 capable devices.
3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

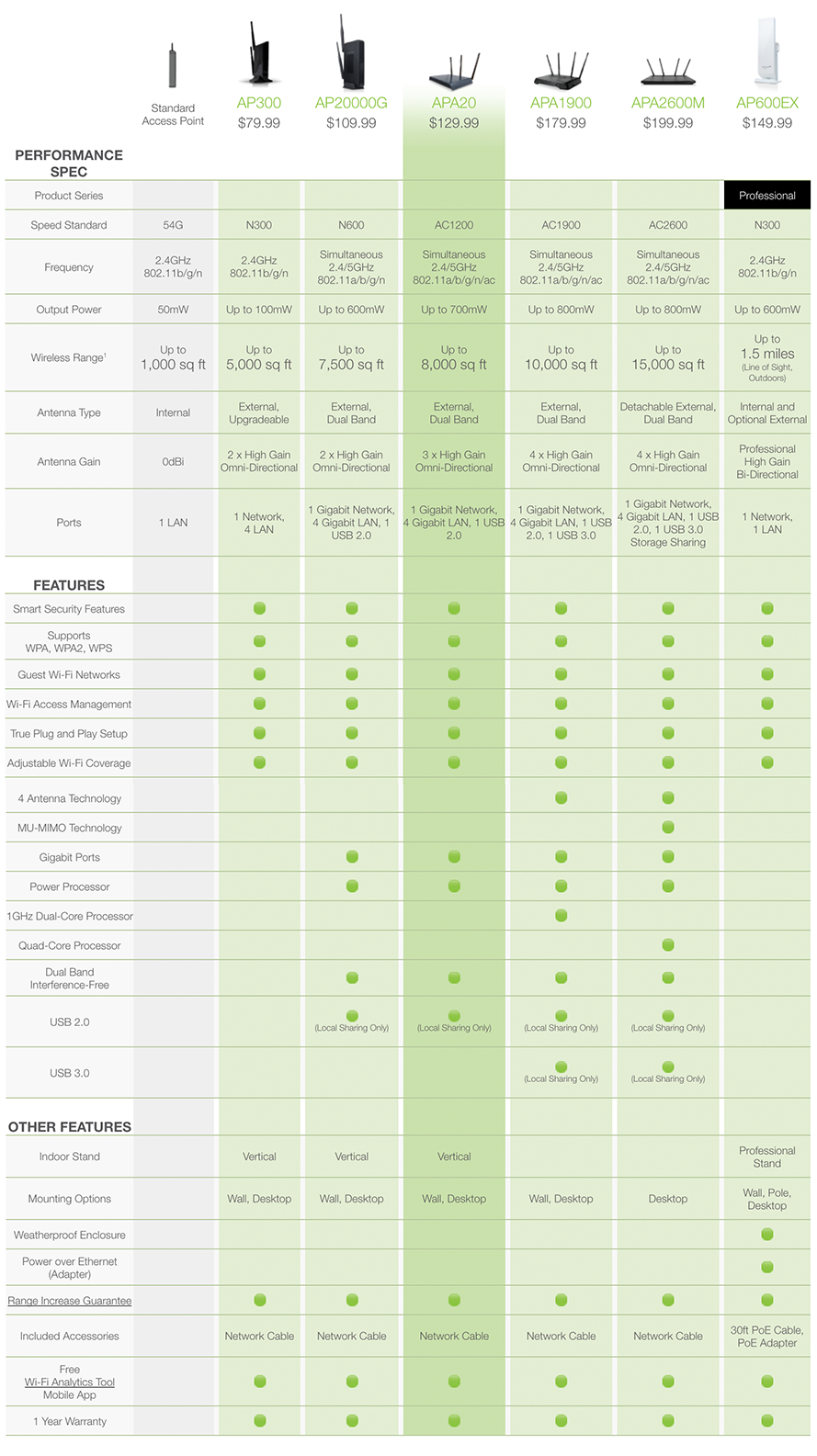

AP600EX: To achieve wireless range of up to 1.5 miles, it is necessary to use Amped Wireless Pro Series products together with line of sight: Pro Range Extender, Pro Access Point and/or Pro USB Adapter.
