Amped Wireless Titan-AP High Power AC1900 Wi-Fi Access Point APA1900
SKU
APA1900
Add Ultimate Wi-Fi Coverage & Performance to your Existing Network
Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.
Make sure your computer is connected to the Access Point wirelessly and NOT using a network cable. Ensure the power is plugged in and on. Try to access the setup menu again.
Enter the following web address into your web browser instead of ‘setup.ampedwireless.com’: http://192.168.80.240
Power off (unplug the power adapter) the Access Point and power it back on. Try again.
Try to open your web browser to the default IP address by putting this number into your web browser instead: 192.168.80.240
Reset your Access Point to default settings by holding the Reset Button (located on the back panel) for ten (10) seconds and try again.
If you are using a Static IP, you will need to enter the assigned IP Address into the web browser to access the web menu. When using a Static IP, the setup.ampedwireless.com shortcut will no longer work.
Your router or original network may not have Internet access. First check to see if you are able to access the Internet by connecting directly with your router. If you cannot, there is a problem with your router that needs to be fixed first. If you are able to access the internet, continue with the following troubleshooting options below.
Your router may be using Static IP assignments. If so, you will need to configure a Static IP for the Access Point. Connect your PC to the Access Point using an Ethernet cable. Disconnect your PC from any wireless networks that it may be connected to. Access the web menu at setup.ampedwireless.com using a web browser. Access the IP settings menu from the left hand navigation bar. Select ‘Disable’ under the DHCP dropdown menu and enter an IP address that matches your router’s IP settings.
Detach the Access Point from your router and reset it back to default settings by holding down the reset button (red circle) on the back panel of the Access Point for 5-10 seconds. After it has reset, reattach it to your router’s network port. Allow up to 2 minutes for the Access Point to reconfigure itself to your network and attempt to access the Internet through the Access Point’s wired or wireless network.
The settings on your router’s network may have changed or you may have lost internet connection on your home router. Any changes to the DHCP settings of your home router may affect the Internet connection of the Access Point. Check the settings on your router and try again.
Reboot the Access Point by unplugging the power adapter and plugging it back in. Allow up to 2 minutes for the Access Point to reconfigure itself to your network. Check to see if your connection has been reestablished by viewing a website.
Double check that you are connected to the Access Point and not to your home router. Use an Ethernet cable and attach it between your computer and the Access Point. Disconnect your computer from all wireless networks and try to access the web menu again.
If you are advanced in networking troubleshooting, log onto your home router’s web interface. Look for the DHCP client list and try to find the IP address of your Access Point assigned by your home router. Once you have it, connect to the Access Point using an Ethernet cable. Open your web browser and enter the IP address into the address bar.
Reset the Access Point back to default settings and try the Basic Setup again. To reset the Access Point back to default settings, hold the Reset Button (on the back panel) down for five (5) to ten (10) seconds. After the Access Point has fully reset, use an Ethernet cable and connect to the Access Point. Log in to the web menu at http://setup.ampedwireless.com and reconfigure the settings for your Access Point.
You may be too far away from the wireless network. Wireless data transfer speeds degrade as distances increase between your computer and the Access Point.
You may be downloading from the Internet and not within your local network. Files transferred through the Internet are limited by your ISP speed and the data download speeds from the website that you are downloading from.
Your computer may be using an older Wi-Fi adapter with lower speed limits (802.11b/g/n). For maximum speeds, use 802.11ac Wi-Fi adapters.
You may have interference on the wireless channel that the Access Point is currently using. Try changing the channel of your wireless network.
Step back at least 10 feet from the Access Point and check your signal again. The Access Point emits high power, long range Wi-Fi signals that may confuse your wireless adapter signal reading at close range. The speed and signal are at 100%, however your readout may not be displaying the data correctly.
Check that your antennas are securely connected to the antenna connectors on the back of the Access Point.
The wireless channel that your network is running on may be congested. Change the wireless channel on your Access Point.
Check to see that your wireless output settings are at 100%. Go to the web menu, Wireless Settings and check the Advanced Settings. Make sure the output power is at 100%.
Check that your antennas are securely connected to the antenna connectors on the back of the Access Point.
Your Access Point may be installed in a poor location. Avoid setting up your Access Point in areas with high interference, such as near fridges, microwaves, metallic objects and low surfaces. Install the Access Point in a higher location if possible.
Adjust the Antennas of the Access Point in different angles.
Your wireless network adapter may be outdated and have older wireless technology not capable of achieving the wireless network speeds of the Access Point. To achieve maximum wireless speeds, it is required that you have a 802.11n (2.4GHz) or 802.11ac (5GHz) adapter.
Check that you are using the latest Wi-Fi security type: WPA or WPA2. WEP security may slow down your wireless speeds.
Check that the Access Point’s wireless data rate is set to AUTO or 11N (2.4GHz) and 11AC (5GHz) data rate speeds.
Wireless speeds degrade as you get further away from the Access Point.
Check that the wireless channel set on the Access Point is not crowded. Try changing the wireless channel to another channel and test the speed again.
Remove the USB storage device from the Access Point and reboot it by unplugging the power adapter. Once rebooted, try inserting the USB storage device again.
Make sure your USB storage device is not corrupted and is working properly and try again.
The Access Point supports WPS connections, however, some companies may use proprietary code for their own push button configurations. Try connecting using the Windows wireless utility or Mac wireless utility instead.
Ultimate Range & Wi-Fi Coverage Add long range Wi-Fi to your entire home or office with the TITAN-AP. High Power amplifiers, low noise amplifiers and high gain antennas provide the ultimate Wi-Fi experience with a signal that easily penetrates walls and eliminates Wi-Fi dead spots.
14 Powerful Amplifiers & 4 Antennas The TITAN-AP is packed with the latest high power technology. With a total of 14 advanced amplifiers (3 x 2.4GHz amplifiers, 3 x 5GHz amplifiers, 4 x 2.4GHz signal reception amplifiers, 4 x 5GHz signal reception amplifiers) and 4 high gain 5dBi antennas, it delivers up to 800mW of output power. Providing the ultimate Wi-Fi performance and coverage, it is a leader in its class.
Stable Connections with 4 Antenna-Rx Technology The TITAN-AP features a unique combination of 3 transmitters with 4 receivers and 4 antennas per frequency to blanket a home or office with multiple Wi-Fi streams for unparalleled reliability, performance, and range.
Unmatched AC1900 Wi-Fi for Flawless HD & 4K Streaming Move faster than ever with unprecedented Wi-Fi speeds of up to 1900Mbps, that's 600Mbps on the 2.4GHz frequency and 1300Mbps on the 5GHz. Seamlessly stream HD and 4K content to multiple devices at once and eliminate gaming lag.2
More Bandwidth for More Devices The TITAN-AP combines AC1900 Wi-Fi speeds with Amped Wireless' High Power Technology to provide multiple room, blazing-fast Wi-Fi coverage. The increased bandwidth of AC1900 and 4 Antenna-Rx Technology means your entire family can stream whatever they want, whenever they want, with no lag, all at the same time.
Parental Security Features & Guest Networks You're in control! Smart security features allow you to set the exact days and times that the networks are available, control the strength of your signal, and even block specific devices from accessing the network at all. Create up to 8 additional Wi-Fi networks for guests or conference rooms and enjoy secure connections with WPS push button configuration.
4 Gigabit Wired Ports Connect wired PCs, servers, printers, or A/V device, such as smart TVs, Blu-ray™ players, or gaming consoles at gigabit speeds with the four built-in wired network ports.
High Power Dual-Core Internet Processor Do more now with a powerful 1GHz Dual-Core Processor that is built to handle heavy traffic with ease, for the best networking experience.
Share Files Faster with USB 3.0 Includes two USB ports, one USB 3.0 and one USB 2.0. These ports are designed for attaching USB storage devices, such as an external hard drive or flash drive, to share at home or in the office with other networked computers.
Universal Compatibility The Access Point works with all brands and standards of single (2.4GHz) or dual band (2.4GHz/5GHz) wireless routers, powerlines or network switches.
Simple Plug & Play Setup Configuring the Access Point is easy. You simply plug the TITAN-AP into your router or network switch and the Access Point will automatically configure itself to your network. That's all it takes to get your High Power Wi-Fi Network up and running.
Specifications are subject to change without notice.
1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.
2 All transmission rates listed, for example 600Mbps for 2.4GHz and 1300Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the unit. AC1900 wireless speeds are achieved when connecting to other AC1900 capable devices.
3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Fixed file size display error that occured for some USB storage devices
Fixed error with networks with an apostrophe in the SSID
Important: Before upgrading firmware, always save your current settings from the Save/Reload Settings page.
To access from the web menu: More Settings > Management > Save/Reload Settings > Save Settings to File After the firmware updates, load your saved settings to keep your existing configurations.
3 x 2.4GHz Amplifiers 3 x 5GHz Amplifiers 8 x Low Noise Amplifiers
Processor:
1GHz Dual-Core Processor
Memory:
128MB DDR3
Wireless Coverage Control:
15% - 100% Output Power (Individually adjustable for 2.4GHz and 5GHz networks)

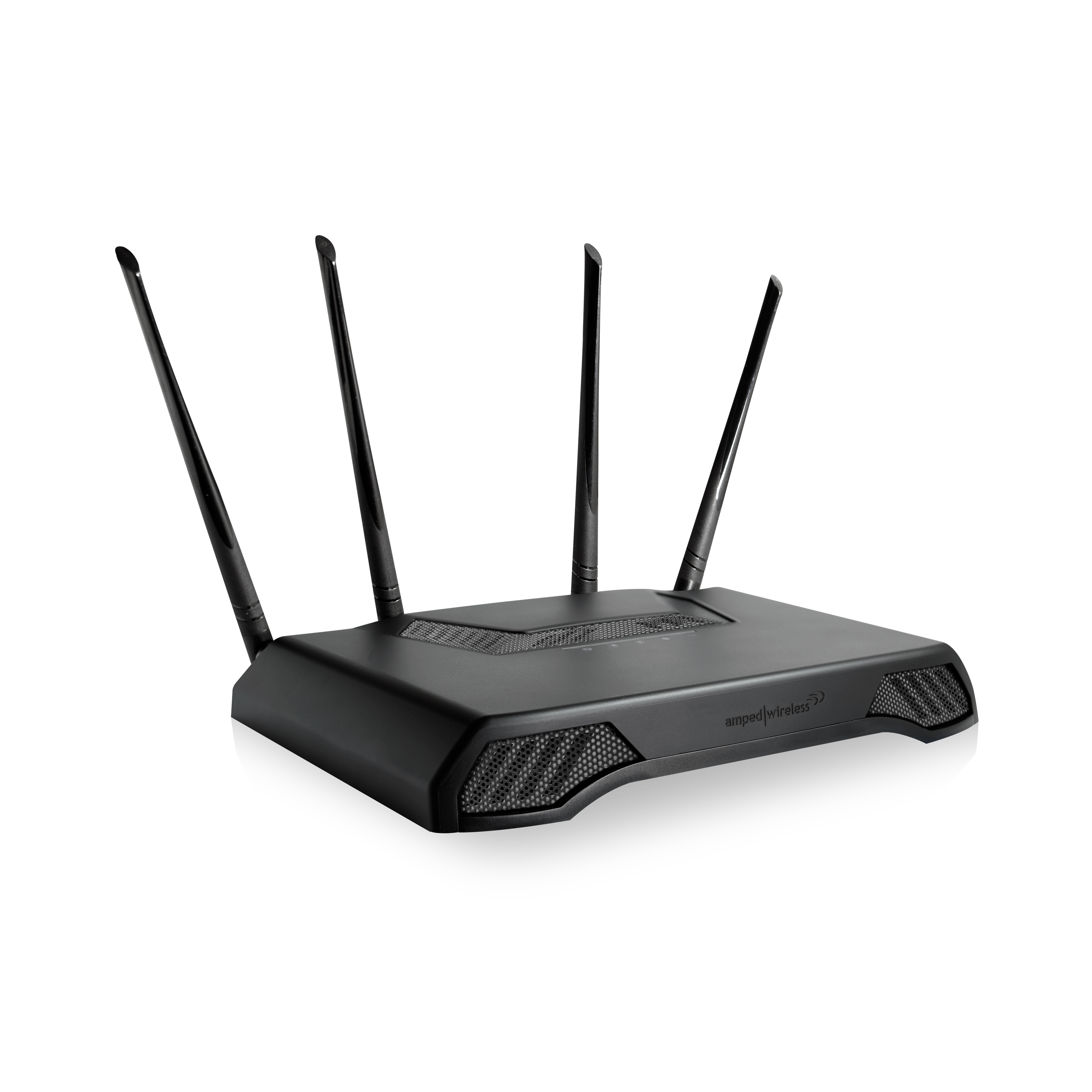

Antennas:
4 x Detachable High Gain 5dBi Dual Band Antennas

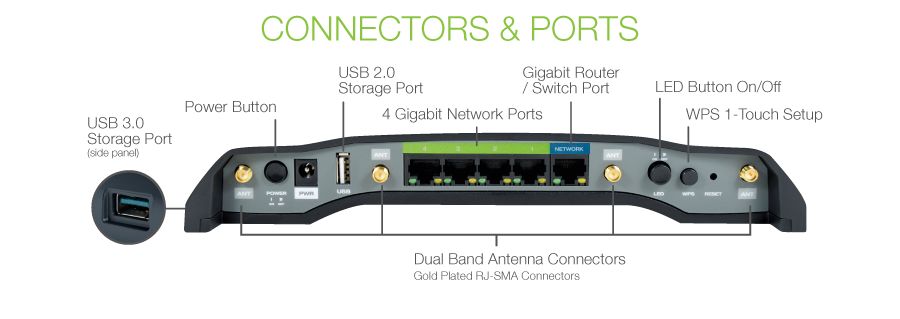

Ports:
1 x RJ-45 10/100/1000M WAN Port (Network Port) 4 x RJ-45 10/100/1000M LAN Ports (Local Ports) 1 x USB 3.0 Port for USB Storage 1 x USB 2.0 Port for USB Storage
Specifications are subject to change without notice.
1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.
2 All transmission rates listed, for example 600Mbps for 2.4GHz and 1300Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the unit. AC2600 wireless speeds are achieved when connecting to other AC2600 capable devices.
3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
AP600EX: To achieve wireless range of up to 1.5 miles, it is necessary to use Amped Wireless Pro Series products together with line of sight: Pro Range Extender, Pro Access Point and/or Pro USB Adapter.
