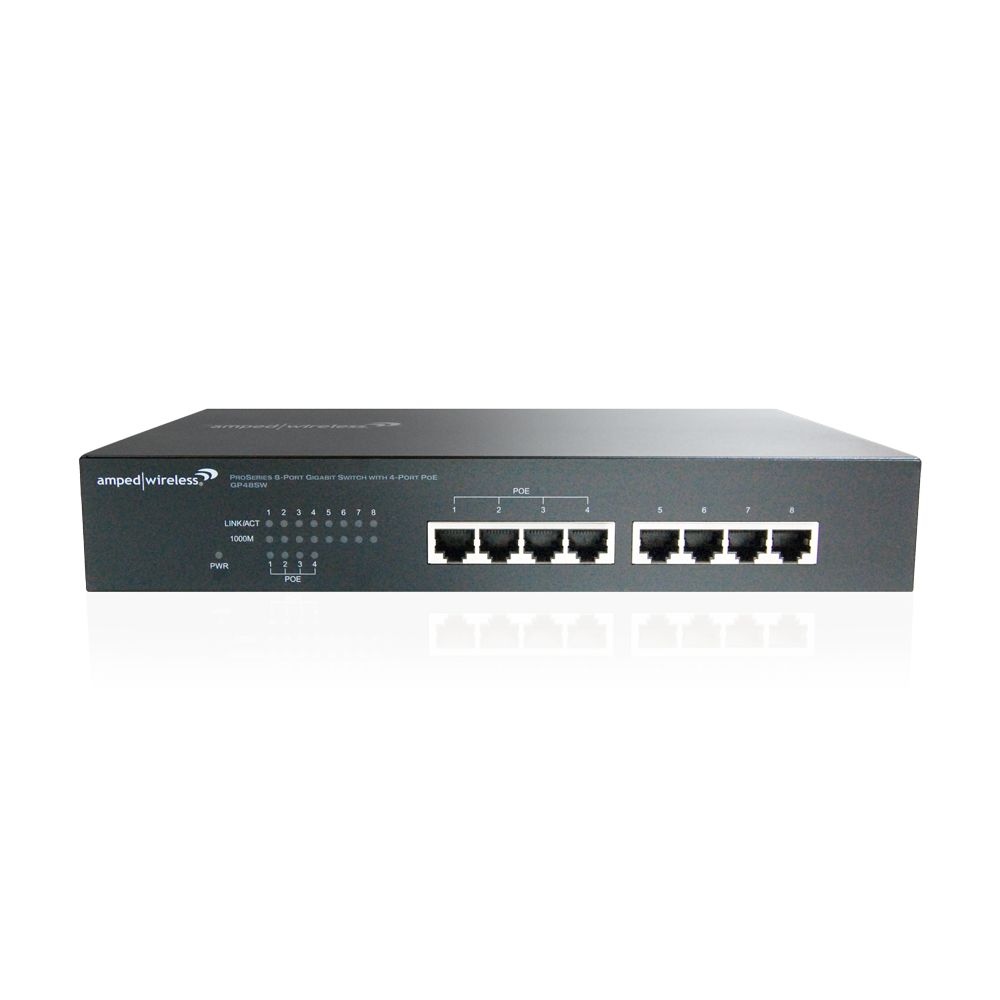

ProSeries 8-Port Gigabit Switch with 4-Port PoE

Out of stock
SKU
GP48SW
Special Price $49.99 Regular Price $119.99

Expand your wired network at gigabit speeds and add Power over Ethernet

  • Connect network devices at ultra-fast gigabit speeds for
    max performance
  • Transfer power and data at gigabit speeds over a single cable
    with PoE
  • Use less energy with the Amped Green advanced power saving feature
  • Place it where you need it on a desktop or in a rackmount
  • Plug your devices into the Switch and you're done, no
    configuration is needed

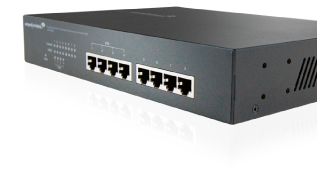

ProSeries 8-Port Gigabit Switch with 4-Port PoE (GP48SW)

The Amped Wireless Pro Series 8-Port Gigabit Switch with 4-Port PoE adds an additional eight wired devices to any network at gigabit speeds and with four of those ports functioning as Power over Ethernet. With PoE you can transfer power and data at gigabit speeds, with a single cable. Making this the perfect Switch for your IP cameras, telephones, access points and other PoE capable devices. All of this ultra-fast and reliable data transmitting is packed into the GP48SW's rugged metal enclosure and is even built with Amped Green, an advanced power saving feature for energy efficiency. Add this work horse to any network and experience the most reliable, gigabit speeds on the market.

HOW IT WORKS

How It Works





KEY FEATURES



  • Ultra-Fast Gigabit Connections
    Connect up to eight devices at gigabit wired speeds for maximum performance and reliability. Supports full and half duplex, and MDI/MDI-X auto crossover.
  • Power over Ethernet Ports
    Transfer power and data at gigabit speeds over a single cable. With a total power budget of 80W (25W max per port) it can simultaneously power up to four 802.3af/at devices such as IP cameras, telephones, and access points.
  • Rugged & Reliable Design
    Experience high performance in extreme conditions with this ruggedly designed, metal enclosure without internal fans.
  • Amped Green: Energy Efficient Design
    Use less energy with Amped Green, an advanced power saving feature that allows for less power consumption during periods of low activity.
  • Plug & Play Installation
    Get up and running in seconds with no required configuration. Simply plug in your cables and attach them to your devices. That's it!
  • Real Time LED Indicators
    Stay immediately informed with LED indicators on the front of the display panel, providing real time data on all connections, activity, and power.
  • Desktop or Rackmount
    Place it where you need it. The GP48SW includes a rackmount kit to fasten to any network rack or simply place it on a desk for easy access.
  • Rapid Data Transmissions
    Store-and-forward switching rapidly checks all data packets for errors before transmitting to ensure reliable data transfers at ultra-fast wired speeds.



PORTS & INDICATORS



Ports & Indicators

PLUG & PLAY



Plug & Play





Buy the GP48SW ProSeries 8-Port Gigabit Switch with 4-Port PoE:

Add to Cart




ProSeries 8-Port Gigabit Switch with 4-Port PoE
  • Ultra-Fast Gigabit ConnectionsUltra-Fast Gigabit Connections
    Connect up to 8 devices at gigabit wired speeds for maximum performance and reliability. Supports full and half duplex, and MDI/MDI-X auto crossover.
  • Power over Ethernet PortsPower over Ethernet Ports
    Transfer power AND data at gigabit speeds over a single cable. With a total power budget of 80W (25W max per port) it can simultaneously power up to 4 802.3af/at devices such as IP cameras, telephones, and access points.
  • Rugged & Reliable DesignRugged & Reliable Design
    Experience high performance in extreme conditions with this professional quality gigabit switch. Draped in a rugged metal enclosure, the GP48SW can withstand the toughest conditions.
  • Amped Green: Energy Efficient Design Amped Green: Energy Efficient Design
    Use less energy with Amped Green, an advanced power saving feature that allows for less power consumption during periods of low activity.
  • Plug & Play InstallationPlug & Play Installation
    Get up and running in seconds with no required configuration. Simply plug in your cables and attach them to your devices. That's it!
  • Real Time LED IndicatorsReal Time LED Indicators
    Stay immediately informed with LED indicators on the front of the display panel, providing real time data on all connections, activity, and power.
  • Desktop or RackmountDesktop or Rackmount
    Place it where you need it. The GP48SW includes a rackmount kit to fasten to any network rack or simply place it on a desk for easy access.
  • Rapid Data Transmissions Rapid Data Transmissions
    Store-and-forward switching rapidly checks all data packets for errors before transmitting to ensure reliable data transfers at ultra-fast wired speeds.


Expand your wired network at gigabit speeds and add Power over Ethernet

Browse the selections below to view support materials, Forum links, and further product information. If you are having problems finding what you need, contact us.

Standards:





IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3af/802.3at PoE
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet
Interface:

8 x 10/100/1000Mbps RJ-45 Ports
4 x PoE Ports
Supported MAC Addresses: 8K
Buffer Memory: 128KB
Jumbo Frames: 9KB
Filtering / Forwarding Rates:


1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
Transmission Media:


10BASE-T Cat. 3, 4, 5 UTP/STP
100BASE-TX Cat. 5 UTP/STP
1000BASE-T Cat. 5E UTP/STP
LEDs:



Power
LNK/ACT
1000M
PoE
Internal Switching

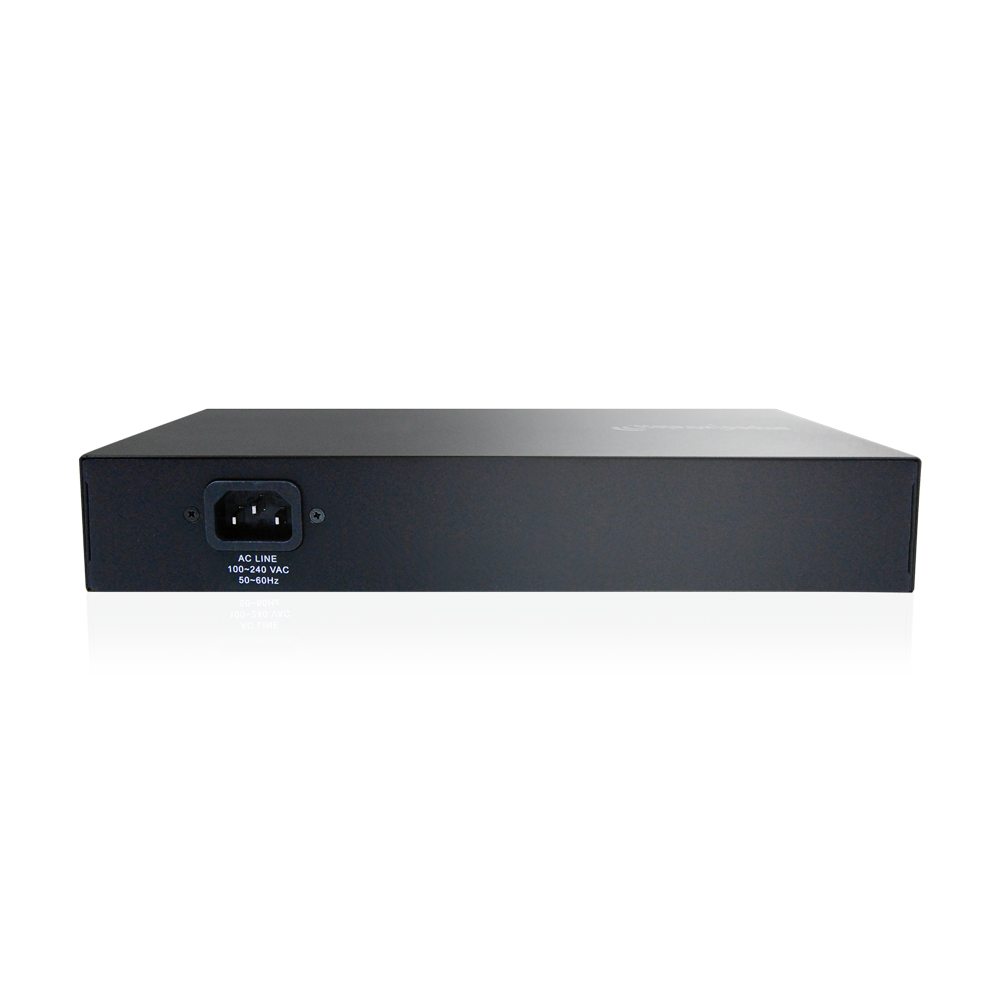

Power Supply:
Input: 100-240VAC, 50-60Hz
Output: 53V, 1.3A
PoE Power Ratings:


80W Total
30W x 2P = 60W
15.4 x 4P = 61.6W
Operating Temperature: 32° to 104° F (0° to 40° C)
Storage Temperature: -40° to 158° F (-40° to 70°C)
Humidity: Operating: 10 to 90% RH (non-condensing)
Enclosure: Metal
Dimensions: 8.48 x 5.23 x 1.65 inches
System Requirements:

Network Device with RJ-45 Connection
RJ-45 Ethernet Cable
Package Contents:

8-Port Gigabit Switch (4-Port PoE)
4 x Rubber Feet
2 x Rack-Mount Kit with Brackets & Screws
1 x Setup Guide
1 x Power Cord
