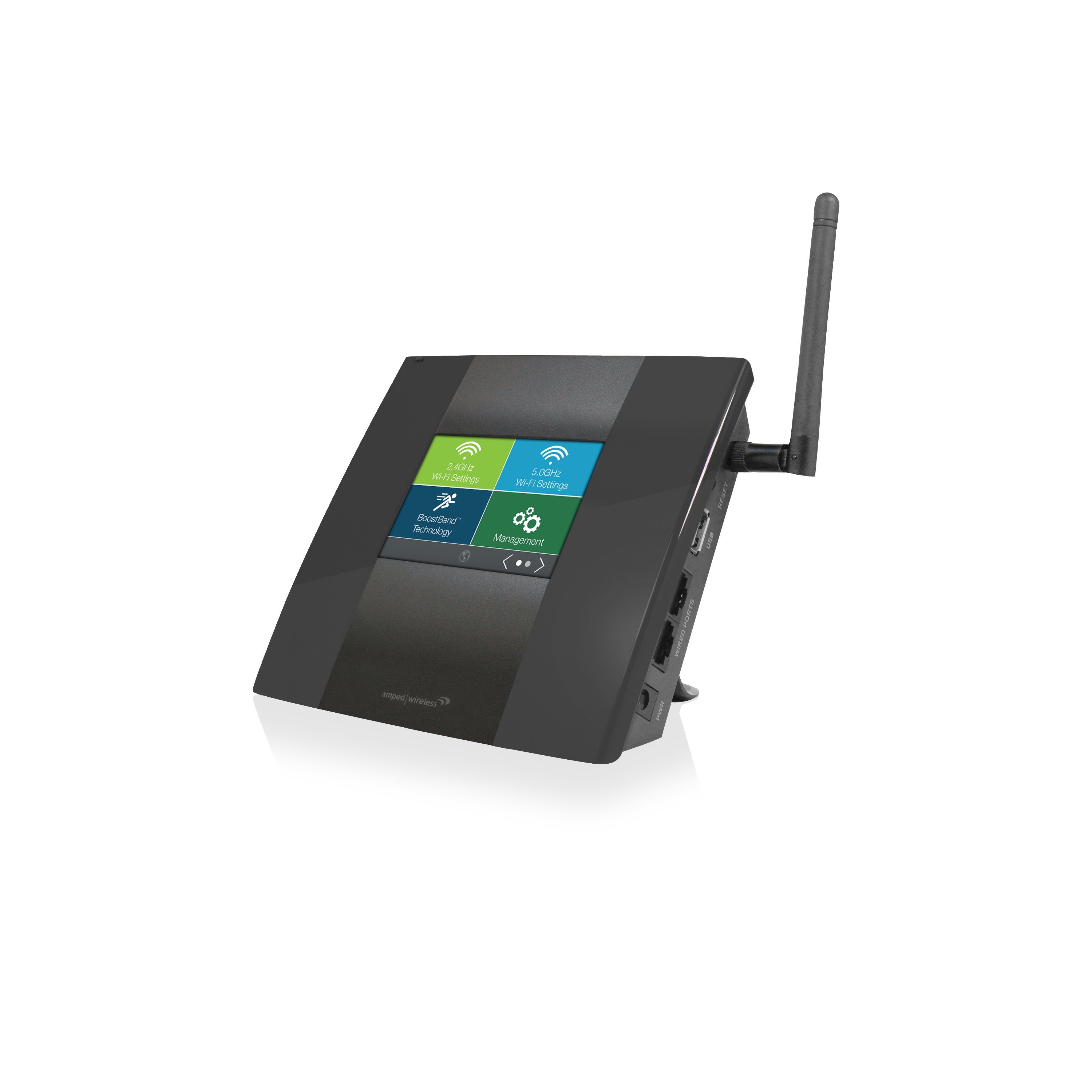

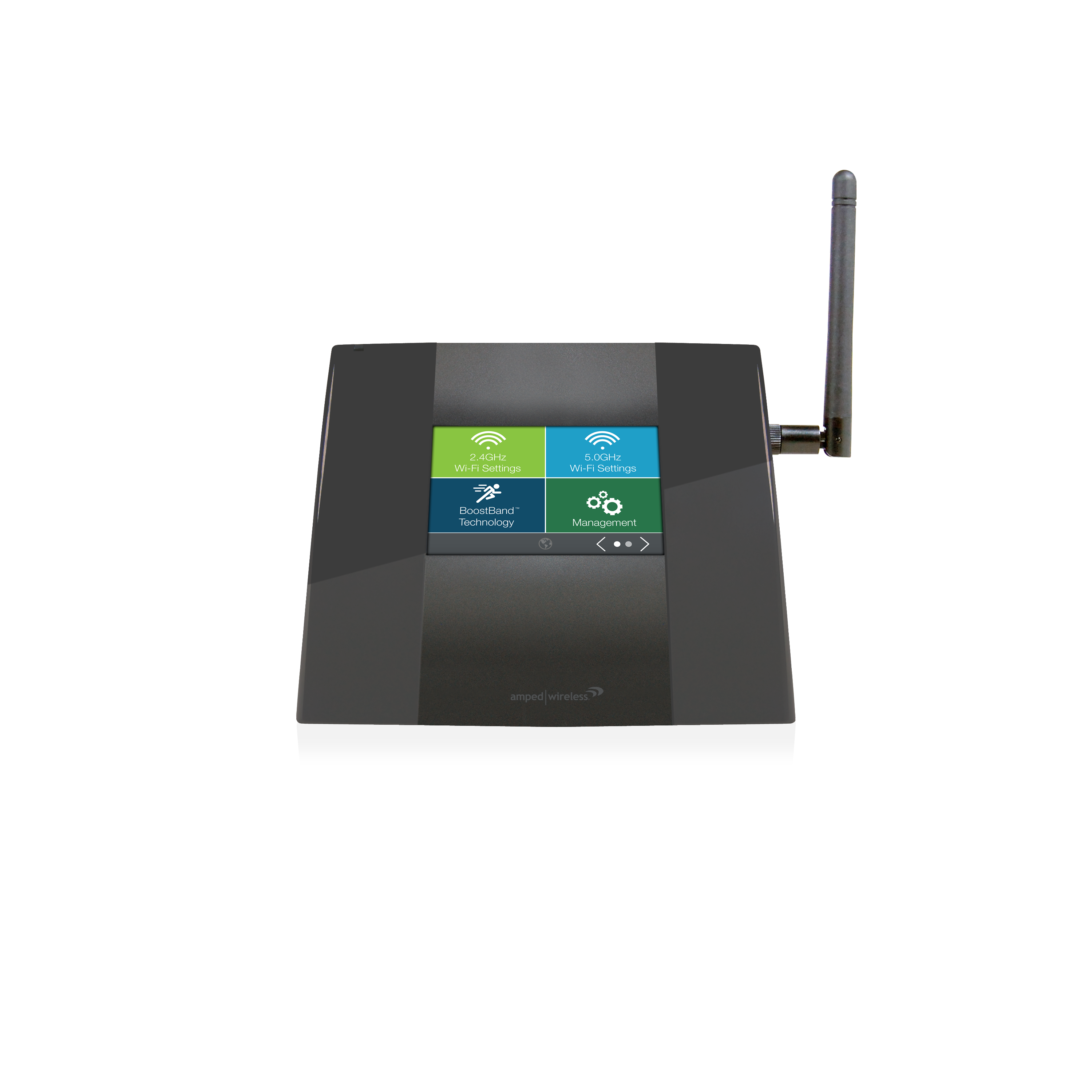

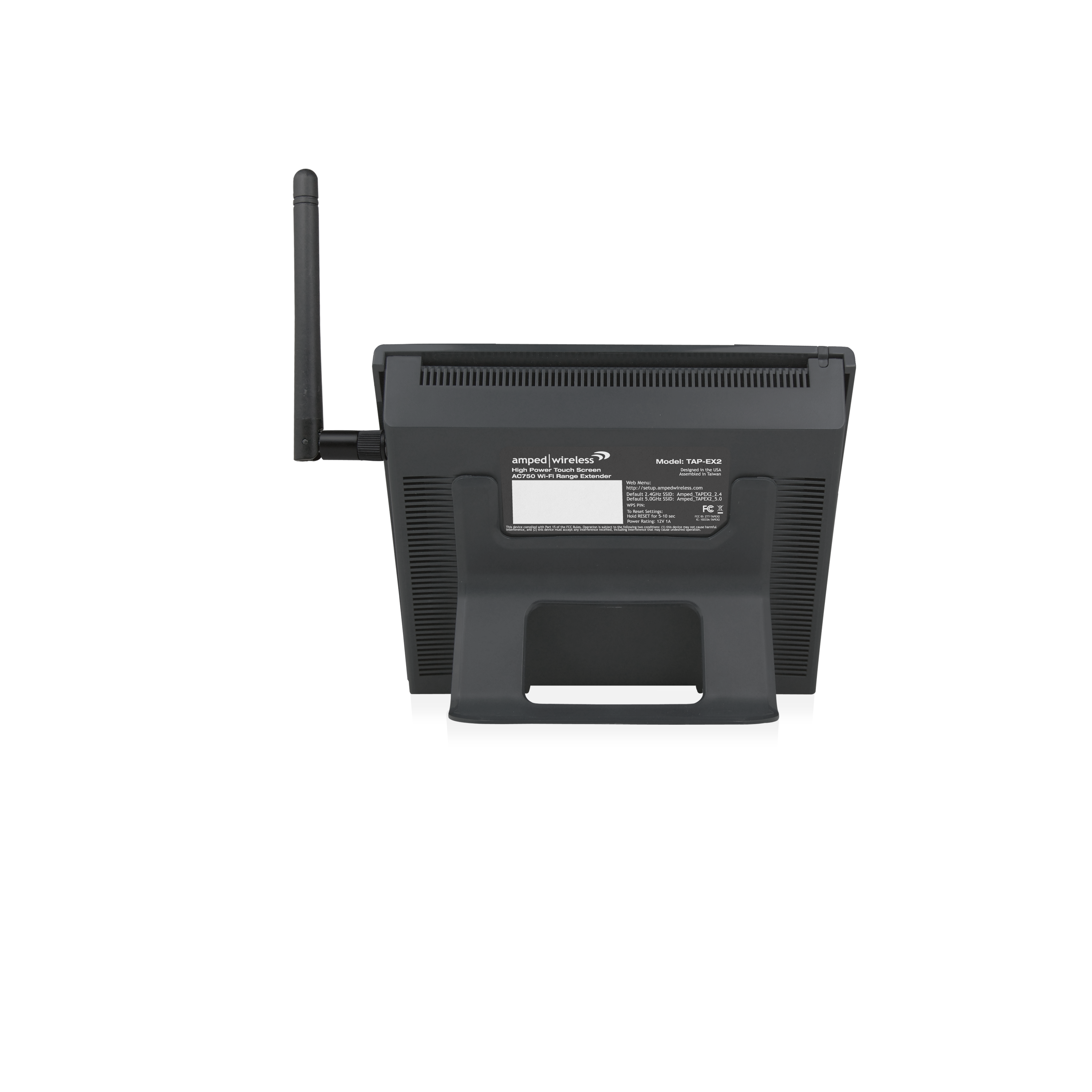

High Power Touch Screen AC750 Wi-Fi Range Extender TAP-EX2
SKU
TAP-EX2
Special Price$99.99Regular Price$149.99
The TAP-EX2 High Power Touch Screen Wi-Fi Range Extender extends the range of any 802.11a/b/g/n/ac Wi-Fi network with the tap of your finger. It works by repeating the signal from your single or dual band Wi-Fi router and redistributing that signal to a new, extended location. The TAP-EX2 features a 3.5" color touch screen display for easy setup without the help of any additional devices. It is equipped with 6 advanced amplifiers, and high gain antennas to boost your Wi-Ficoverage by an additional10,000 sq ft and at ultra-fast 802.11ac Wi-Fi speeds. With 3 wired ports, you can also directly attach additional Internet devices like smart TVs and game consoles. The TAP-EX2 is a high performance Extender, built in an attractive and compact design and with the most simple setup available. With features like Digital Clock Mode, you won't want to hide it in a cabinet like other devices. The TAP-EX2 is a sleek and powerful addition to any home or office network.
Buy the TAP-EX2 High Power Touch Screen AC750 Wi-Fi Range Extender:
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC750 wireless signal speeds achieved when connecting to other AC750 or greater 5GHz devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.
The TAP-EX2 High Power Touch Screen Wi-Fi Range Extender extends the range of any 802.11a/b/g/n/ac Wi-Fi network with the tap of your finger. It works by repeating the signal from your single or dual band Wi-Fi router and redistributing that signal to a new, extended location. The TAP-EX2 features a 3.5" color touch screen display for easy setup without the help of any additional devices. It is equipped with 6 advanced amplifiers, and high gain antennas to boost your Wi-Fi coverage by an additional10,000 sq ft and at ultra-fast 802.11ac Wi-Fi speeds. With 3 wired ports, you can also directly attach additional Internet devices like smart TVs and game consoles. The TAP-EX2 is a high performance Extender, built in an attractive and compact design and with the most simple setup available. With features like Digital Clock Mode, you won't want to hide it in a cabinet like other devices. The TAP-EX2 is a sleek and powerful addition to any home or office network.
Up to 10,000 Sq Ft of Wi-Fi* Great for large buildings and backyards
Easy Touch Screen Setup Sets up in seconds with the tap of your finger
Eliminate Wi-Fi Dead Spots Penetrate walls with amplified Wi-Fi
Ultra-Fast AC Technology Next gen 802.11ac Wi-Fi for ultra-fast data transfer speeds
Wi-Fi Access Control Create up to 8 networks for guests and restrict access to specific users
AIRPLAY®, AIRPRINT™ & Home Sharing Works with all Apple networking features
Wi-Fi Coverage Control Block access to specific users or set user schedules
Digital Clock Mode Make the Range Extender screen a digital clock while in sleep mode
Connect Devices with Wired Devices Directly connect devices like smart TVs and game consoles
Share Files with USB Attach a USB drive and easily share files locally* USB Storage device not included.
TECHNICAL SPECIFICATIONS
Wireless Standard: 802.11a/b/g/n/ac
Frequency Band: 2.4GHz & 5GHz
Wireless Speed: Up to 750Mbps

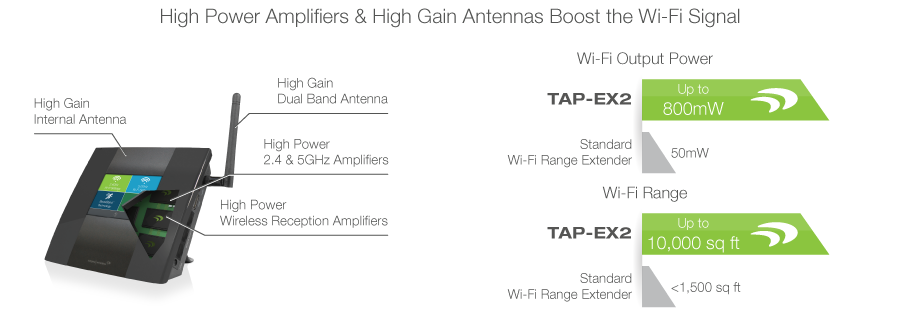

Amplifiers: 2 x 2.4GHz Amplifiers, 1 x 5GHz Amplifier, 3 x Low Noise Amplifiers
Wireless Security: WEP, WPA, WPA2
Wireless Access Scheduling: Specific day & time
Wireless Coverage Control: 15% - 100% Output Power
Antennas: 1 x Detachable High Gain Dual Band Antenna, 1 x Internal High Gain Antennas
Ports: 3 x RJ-45 10/100 (LAN) Ports, 1 x USB 2.0 Port
Output Power: Up to 800mW
Screen: 3.5” Touch Screen Display
PACKAGE CONTENTS
High Power Touch Screen AC750 Wi-Fi Range Extender
Your Home Network may be secured. Double check that you have the correct security key to connect to the Home Network.
Your Range Extender may be located too far from your Home Network. Run through the Setup Wizard again. On the SCAN page, your Home Network should show a signal strength of 70% or greater. If it does not, move the Range Extender closer to your Home Network and try again.
If you are connecting to a dual band router, both networks (2.4GHz and 5GHz) should have a signal strength of 70% or greater.
Check that the antenna is connected securely to the antenna connector.
Check to see that your Home Network router’s DHCP server is enabled. The Range Extender needs to obtain an IP from your Home Network router.
The Range Extender may be out of range. Move the Range Extender closer to the Wi-Fi router and try the Setup Wizard again from the Touch Screen Menu. It is recommended that your Home Network shows a signal strength of 70% or greater in the Wizard SCAN results.
From the touch screen Dashboard, go to Settings then the Wi-Fi Settings menu to access Wireless Coverage settings. Make sure the setting is at 100% and try again.
Make sure that your Home Network’s Wi-Fi SSID is broadcasting and not hidden. If your Home Network SSID is hidden, you will need to manually setup the Range Extender through the Wi-Fi Settings > Home Network Settings menu.
The Range Extender should automatically heal itself and reconnect to your wireless network. However, in the event that it does not and you are not able to access the Internet or your home network please try the following options:
The connection to your Home Network has been dropped. This can be caused by several events to your home Wi-Fi connection. When this occurs, simply run the Setup Wizard again from the Touch Screen Menu and reconfigure the Range Extender.
Reboot the Range Extender, wait 3 minutes for the Range Extender to reconnect to your network and try to access the Internet.
The Range Extender automatically reconfigures itself in the event of a channel change on your router. However, in the case that it does not, check to see that your home Wi-Fi router settings have not changed. Any changes to the SSID, security, or channel number from the original settings will disconnect the Range Extender’s connection to the home network. A power outage can cause a change in the channel of your router. To solve this simply run the Setup Wizard again from the Touch Screen Menu and reconfigure your Home Network connection. You can also set a static channel number on your router to prevent this from happening again in the future.
Check to see that your home Wi-Fi router is still on. If it has been turned off please turn it back on. The Range Extender should automatically reconnect to your Home Network within 10 minutes.
If the range extender does not automatically reconnect, try rebooting the Range Extender by unplugging the power cable and plugging it back in.
The Range Extender will repeat the 2.4GHz signal and the 5GHz signal from your router simultaneously. Both wireless networks must have a signal strength of 70% or greater with the Range Extender for a reliable connection. Make sure that your dual band router is close enough to the Range Extender to receive a strong signal.
Check to make sure that you have the correct security key for both the 2.4GHz and 5GHz network of your dual band router. These keys may sometimes be different from each other.
Check that the antenna is connected securely to the antenna connector.
Ensure that your dual band router does not have any security features enabled, such as MAC address filtering. If it does, disable it and try again.
The Range Extender may be out of range. Move the Range Extender closer towards the Wi-Fi router and try the Setup Wizard again from the Touch Screen Menu.
The antenna on your Range Extender may be loose. Tighten the antenna connection and try again.
Check that the antenna is connected securely to the antenna connector.
The wireless Home Network may not be a compatible wireless network (802.11a/b/g/n/ac).
The Home Network itself may not have Internet access. Check to see that you have internet access by connecting directly to the Home Network first. If you are able to go online then this is not a problem. If you cannot go online, then the Home Network’s Internet connection must first be resolved.
You may have a DNS issue and the Range Extender is not obtaining the IP settings from your Home Network. Try to reboot the Range Extender and then access a website. If that fails, then reboot the Home Router to see if that fixes it.
There may be an IP conflict with your Home Network and your Extended Network. Try to adjust the IP Settings of your Extended Network using IP values that are different from your Home Network.
Power on and off the Range Extender and try again.
The connection to the Home Network may be down. Run through the Setup Wizard again. After you have successfully reset the Home Network connection, try connecting wirelessly again.
You may be too far away from your Home Network. The closer the Range Extender is to your Home Network, the better its connection will be. The Range Extender must have a strong signal in order to extend the signal with fast speeds and further range. Move the Range Extender closer to your Home Network and try again.
Check that the antenna is connected securely to the antenna connector.
You may be downloading from the Internet and not within your Home Network or Extended Network. Files transferred through the Internet are limited by your ISP speed and the data download speeds from the website that you are downloading from.
Your computer may be using an older Wi-Fi adapter with lower speed limits and range capabilities (802.11b/g/n).
The Wired Port Routing on the Range Extender may not be defined correctly. While connected to the Range Extender, open your web browser and access http://setup.ampedwireless.com. From the web menu, go to More Settings > Network Settings > Wired Port Configuration. Check that the wired port is routed through an active Home Network connection. If the Range Extender is connected to a 2.4GHz network only, adjust the routing so that all wired ports traffic routes through the 2.4GHz Home Network.
Once you have exhausted all attempts at recovering your passcode, reset the Range Extender to default settings by holding the reset button, located on the right side of the Range Extender, for 5 to 10 seconds. The Range Extender will reboot and erase all current settings. You will need to reconfigure the Range Extender.
From the Dashboard screen, tap on Settings. Tap on Management Settings and then Screen Settings. This screen will allow you to adjust the timeout time for the screen to turn off when there is an interval of no activity.
Step back at least 10 feet from the Range Extender and check your signal again. The Range Extender emits high power, long range Wi-Fi signals that may confuse your wireless adapter signal reading at close range. The speed and signal are at 100%, however your readout may not be displaying the data correctly.
Check that your antenna is fastened tightly to the antenna connector.
The wireless channel that your network is running on may be congested. Change the wireless channel on your home Router and reconnect the Range Extender.
Check to see that your Wi-Fi output settings are at 100%. From the Dashboard, go to Settings, then to the Wi-Fi Settings menu and access the Wireless Coverage settings. Make sure the output power is at 100%.
Your Range Extender may be installed in a poor location. Avoid setting up your Range Extender in areas with high interference, such as, near fridges, microwaves, metallic objects and low surfaces. Install the Range Extender in a higher location if possible.
Check the connections of the Antennas to the Range Extender. Tighten them if necessary.
Adjust the Antenna of the Range Extender in different angles.
The wireless channel that your network is using may be congested. Change the channel for your router’s 2.4GHz network or 5GHz network. The Range Extender should automatically reconnect to your networks new settings, however if it does not, simply reconfigure the Range Extender to your network.
The network adapter that you are using may have poor range, older technology with slower speeds or may need a driver update.
Your computer may be using an older Wi-Fi adapter with lower speed limits and range capabilities (802.11b/g/n).
To achieve 802.11ac Wi-Fi speeds for your extended network, it is necessary to extend an 802.11ac Wi-Fi router. Check that your home router is an 802.11ac router. Extending a router with slower Wi-Fi speeds, such as 802.11b/g/n will result in slower Wi-Fi speeds for your extended network.
Make sure your computer is connected to the Range Extender’s Wi-Fi network: Amped_TAPEX2_2.4 or Amped_TAPEX2_5.0
Try to use a different web browser. We recommend the Google Chrome web browser.
Try to open your web browser to the default IP address by putting this number into your web browser instead: 192.168.1.240
Power off (unplug from the power outlet) the Range Extender and power it back on. Try again.
Reset your Range Extender to default settings by holding the Reset Button (located on the top panel) for ten (10) seconds and try again.
If steps (a) thru (e) fail, disconnect your PC from all Wi-Fi networks. Attach an Ethernet cable between the Range Extender and your PC. Try to access http://setup.ampedwireless.com again.
Check that your wireless adapter supports WPA2 or WPA wireless security. If it does not then you will need to change the wireless security on the Range Extender. Go to the Web Menu, select Wireless Settings and then Wireless Security. Select the Extended Network from the drop down menu and either disable security or downgrade the security to WEP. Try connecting again.
The connection to the Home Network may be down. Use an Ethernet cable and connect directly to the Range Extender. Access http://setup.ampedwireless.com and run through the Setup Wizard again. After you have successfully reset the Home Network connection, try connecting wirelessly again.
If you are advanced in networking troubleshooting, log onto your home router’s web interface. Look for the DHCP client list and try to find the IP address of your Range Extender assigned by your home router. Once you have it, connect to the Range Extender using an Ethernet cable. Open your web browser and enter the IP address into the address bar.
Reset the Range Extender back to default settings and try the Wizard again. To reset the Range Extender back to default settings, push the Reset Button (on the side panel) for five (5) to ten (10) seconds then let go. After the Range Extender has fully reset, use an Ethernet cable (not included) and connect to the Range Extender. Login to the Web Menu at http://setup.ampedwireless.com and run through the Wizard.
Remove the USB storage device from the Range Extender and reboot it by unplugging the power adapter. Once rebooted, try inserting the USB storage device again.
Make sure your USB storage device is not corrupted and is working properly and try again.
The Range Extender supports WPS connections, however, some companies may use proprietary code for their own push button configurations. Try connecting using the Windows wireless utility or Mac wireless utility instead.
Penetrate walls and eliminate dead spots with amplified Wi-Fi technology. Great for large buildings and backyards.

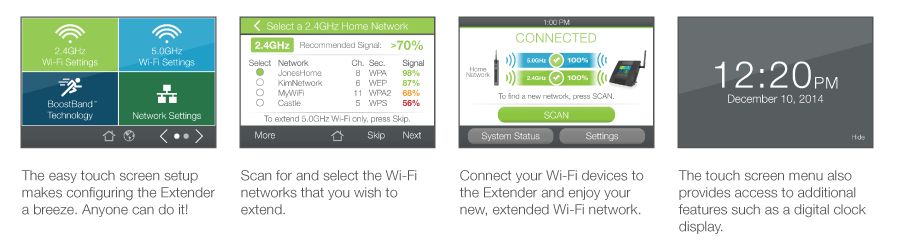

Easy Touch Screen Setup
Set up in seconds with just the tap of your finger and no other devices.
Ultra-Fast AC Wi-Fi Speeds
Supports next gen 802.11ac Wi-Fi for lag-free streaming of videos, music and data throughout your home or office.
AirPlay®, AirPrint™, & Home Sharing
Compatible with all Apple networking features.
Connect Devices with Wired Ports
Directly connect devices like smart TVs and game consoles.
Advanced Wi-Fi Security
WPS One-Touch Setup, WPA, WPA2, WPA Mixed
More Touch Screen Menu Settings
Guest Networks Create Wi-Fi networks with unique IDs and Passwords for guests
Wi-Fi Access Schedule Block access to specific users or set user schedules
User Access Control Restrict or allow network access to specific users
Signal Coverage Control Adjust the distance of your wireless network
Digital Clock Mode Make the Range Extender screen a digital clock while in sleep mode
Touch Screen Passcode Secure the touch screen menu with an access code
USB Storage Share files locally from any USB storage device
Automatic Firmware Updates Check for the latest software updates and install the Firmware
Multilingual Support Change the touch screen language to English, Spanish, or French

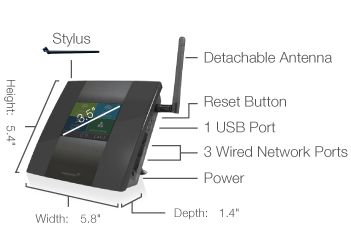

Product Overview

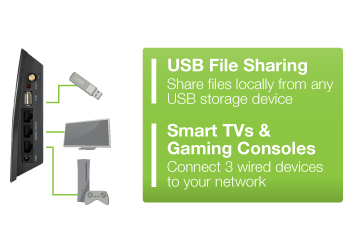

Wired Devices
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC750 wireless signal speeds achieved when connecting to other AC750 or greater 5GHz devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.
Extend the range of any Wi-Fi network with the tap of your finger
Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.
Important: Before upgrading firmware, always save your current settings from the Save/Reload Settings page.
To access from the web menu: More Settings > Management > Save/Reload Settings > Save Settings to File After the firmware updates, load your saved settings to keep your existing configurations.
High Power Touch Screen AC750 Wi-Fi Range Extender Stylus Detachable High Gain Antenna Power Adapter (100-240v) Setup Guide CD: Users Guide & Installation Video Product Stand
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC750 wireless signal speeds achieved when connecting to other AC750 or greater 5GHz devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.
Specifications are subject to change without notice.
1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.
2 All transmission rates listed are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the unit. 802.11ac wireless speeds are achieved when connecting to other 802.11ac capable devices.
3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Up to 10,000 sq ft of Wi-Fi Coverage
Easy Touch Screen Setup
Ultra-Fast AC Wi-Fi Speeds
AirPlay®, AirPrint™, & Home Sharing
Connect Devices with Wired Ports
Advanced Wi-Fi Security
