The Amped Wireless High Power Wireless-150N Compact USB Adapter provides your Mac or Windows laptop or desktop computer with long range, high speed WiFi access in a small package. The compact size of the USB adapter makes it easy to take with you wherever you go. The High Power adapter also features a High Gain 3dBi WiFi upgradeable antenna and an internal power amplifier to give it the range necessary to connect to wireless networks over longer distances.
Key Features
Connect your laptop or desktop computer to your wireless network
Extended wireless range with power amplifier and high gain antenna
Upgradable antenna for more range
Works with all brands of wireless b/g/n, 2.4GHz networks
Easy to Install
The Amped Wireless Difference
Range An advanced Low Noise Wireless Amplifier boosts wireless reception and performance.
The UA150C is optimally tuned with a 3dBi High Gain omni-directional antenna for maximum range.
Speed IEEE 802.11n Wireless-N Technology provides 150Mbps of wireless data transfer speed.
Click here to purchase an Amped Wireless High Power Wireless-150N Compact USB Adapter UA150C:
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. N150 wireless signal speeds achieved when connecting to other N150 or later 802.11n/ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Insert the CD into your CD drive (or DVD) and click on Start, then My Computer. Find your CD or DVD drive and right click it, select explore or open. Find the autoload.exe file and double click it to access the CD menu.
Check to see that your CD-drive is working correctly by inserting another disk first then retry the Amped Wireless installation disk.
Insert the CD into your CD drive (or DVD) and click on the CD icon that appears on your desktop (normally on the upper right corner). Find the file titled Install Software and click it. The menu should appear.
Check to see that your CD-drive is working correctly by inserting another disk first then retry the Amped Wireless installation disk.
The wireless adapter may be out of range. Double check that the antenna is secured tightly to the adapter and scan for wireless networks again.
Verify that the adapter is firmly inserted into your USB drive and try to scan for networks again.
Check to see that the wireless network you are connecting to is functioning correctly. If possible, locate your wireless router and see that the wireless LED is blinking correctly. If not, check the connection and configuration of your wireless router.
(Mac Solution) You may need to activate your wireless adapter. Click the Apple icon, select System Preferences, then click on Network. Highlight the adapter titled Ethernet Adaptor (en#) for OS X 10.5 and below and click Advanced, then click Apply. For OS X 10.6, select the adapter titled 11n Adapter and click Apply. Try to scan for networks again.
(Windows Solution) The wireless adapter may be disabled. Go to the Start menu, select Control Panel. Then select Device Manager and locate the Amped Wireless adapter under the Network Adapters category. Right click the Amped Wireless adapter and check to see if it is disabled. If disabled, enable the adapter and try to scan for networks again. If there is a problem with the driver, it will also be displayed here. Check solution (f) to solve this issue.
Uninstall the software by clicking Start, then select Control Panel, then select Programs. Find the Amped Wireless program and uninstall it. Once fully uninstalled, remove the adapter from your USB port, reinstall the Amped Wireless software using the supplied instructions and try again.
If the LED is not on, this means the adapter does not have power or is installed incorrectly. Verify that the adapter is firmly inserted into your USB drive and try to scan for networks again.
Unplug the USB adapter from the USB port and plug it back in firmly. Re-scan for wireless networks.
(Mac Solution)You may need to activate your wireless adapter. Click the Apple icon, select System Preferences, then click on Network. Highlight the adapter titled Ethernet Adaptor (en#) for OS X 10.5 and below and click Advanced, then click Apply. For OS X 10.6, select the adapter titled 11n Adapter and click Apply. Try to scan for networks again.
(Windows Solution) The wireless adapter may be disabled. Go to the Start menu, select Control Panel. Then select Device Manager and locate the Amped Wireless adapter under the Network Adapters category. Right click the Amped Wireless adapter and check to see if it is disabled. If disabled, enable the adapter and try to scan for networks again. If there is a problem with the driver, it will also be displayed here. Check solution (e) to solve this issue.
Uninstall the software by clicking Start, then select Control Panel, then select Programs. Find the Amped Wireless program and uninstall it. Once fully uninstalled, remove the adapter from your USB port, reinstall the Amped Wireless software using the supplied instructions and try again.
You may have a mismatch in your SSID or your wireless security key. Double check the security key that you are using for your current wireless connection. Double check that the name of the SSID is the correct name of the network you are trying to connect to.
You may have an incorrect IP address assignment.
For Windows XP and 2000: Open the Amped Wireless Utility and go to the General tab. Click Renew IP.
For Windows 7 and Vista: Open the Windows wireless utility by clicking the wireless icon on the bottom right corner. Right click the wireless network that you are connected to and click Status. Click diagnose to allow Windows to reset your connection.
For Mac OS X: Open the Amped Wireless Utility and disconnect from your current network. Wait a few moments and connect again. If this does not work, unplug the USB adapter from your Mac and plug it back in. Connect to your network again and check your Internet connection.
The wireless router that you are connecting to may have lost its Internet connection. If possible, check the connection between your router and the ISP.
Log into the Web Menu for your dual-band wireless router and adjust the wireless settings. Change the wireless band to mixed mode 2.4GHz and 5GHz or 2.4GHz only.
You may be far from your wireless router. Try moving closer and checking your speeds again. Wireless speed degrades as you move further away from the wireless router.
The wireless router you are connected to may not support 802.11n speeds. Check the speed of your wireless router. Make sure it is an 802.11n router.
The wireless router may not be configured for full 802.11n speeds. Check the current wireless settings on your router to ensure that it is in 802.11n mode.
There may be many wireless users on your network. Check that your wireless network is not congested with wireless users.
Users on your wireless network may be utilizing the available bandwidth. Other users may be using data intensive applications such as media streaming, downloading large files and gaming.
If you have an original wireless adapter or Ethernet adapter that may be causing problems with your wireless connection or making your wireless connection slow. To disable it:
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn AirPort Off.
You may be far from your wireless router. Try moving closer and checking your signal strength again. Wireless signal strength degrades as you move further away from the wireless router.
Your wireless environment, home or office may have objects that cause wireless interference. Obstructions such as walls, metal appliances, microwaves among other things may cause wireless signal strength to degrade. Try to use the wireless adapter and your wireless router away from these objects.
The channel of your wireless network may be congested. Change the channel of your wireless network by configuring the settings on your wireless router.
If you have an original wireless adapter or Ethernet adapter that may be causing problems with your wireless connection or making your wireless connection slow. To disable it:
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn AirPort Off.
For Windows XP and 2000: Open the Amped Wireless Utility and go to the General tab. Click Renew IP.
For Windows 7 and Vista: Open the Windows wireless utility by clicking the wireless icon on the bottom right corner. Right click the wireless network that you are connected to and click Status. Click diagnose to allow Windows to reset your connection.
If you feel that your original wireless adapter or Ethernet adapter is causing problems with your wireless connection or making your wireless connection slow you may need to disable your original adapter.
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn AirPort Off.
The wireless adapter supports WPS connections, however, some companies may use proprietary code for their own push button configurations. Try connecting using the Windows wireless utility or Mac wireless utility instead.
Add Long Range Wi-Fi to your Computer Whether you're using a Mac or Windows laptop or desktop PC, the UA150C attaches to an available USB port on your computer and provides long range Wi-Fi connectivity for connecting to your home Wi-Fi network or a Wi-Fi hotspot.
Increased Wi-Fi Range The internal High Power Amplifier is optimally paired with a High Power 3dBi Wi-Fi antenna to provide extra wireless range and performance.

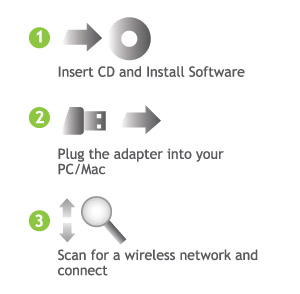

Simple Setup Setup is quick and simple: Insert the installation CD, install the software and plug in the High Power USB Adapter.
Compact Size The small size of the High Power USB Adapter makes it easy to take with you and doesn't take up a lot of space in your laptop bag. It's perfect for users that often travel with their laptops.
Upgradable Antenna for More Wi-Fi Range The High Power USB Adapter features a detachable antenna that can be replaced with an indoor or outdoor high gain antenna for even more Wi-Fi range or for special installation applications.
Universal Compatibility The High Power USB Adapter works great with all 2.4GHz 802.11b/g or n wireless routers, Wi-Fi networks and manufacturers.
Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.
1 x Detachable High Gain 3dBi Antenna 1 x Reverse SMA Connector
Warranty:
1 Year
Setup Requirements:
PC or Mac with CD/DVD drive Mac OS X 10.4, 10.5 or 10.6 Windows 2000, XP (32/64 bit), Vista (32/64 bit) or 7 (32/64 bit) 100 MB of free disk space Available USB 2.0 Port Available Wireless 2.4GHz 802.11b/g/n Network
Package Contents:

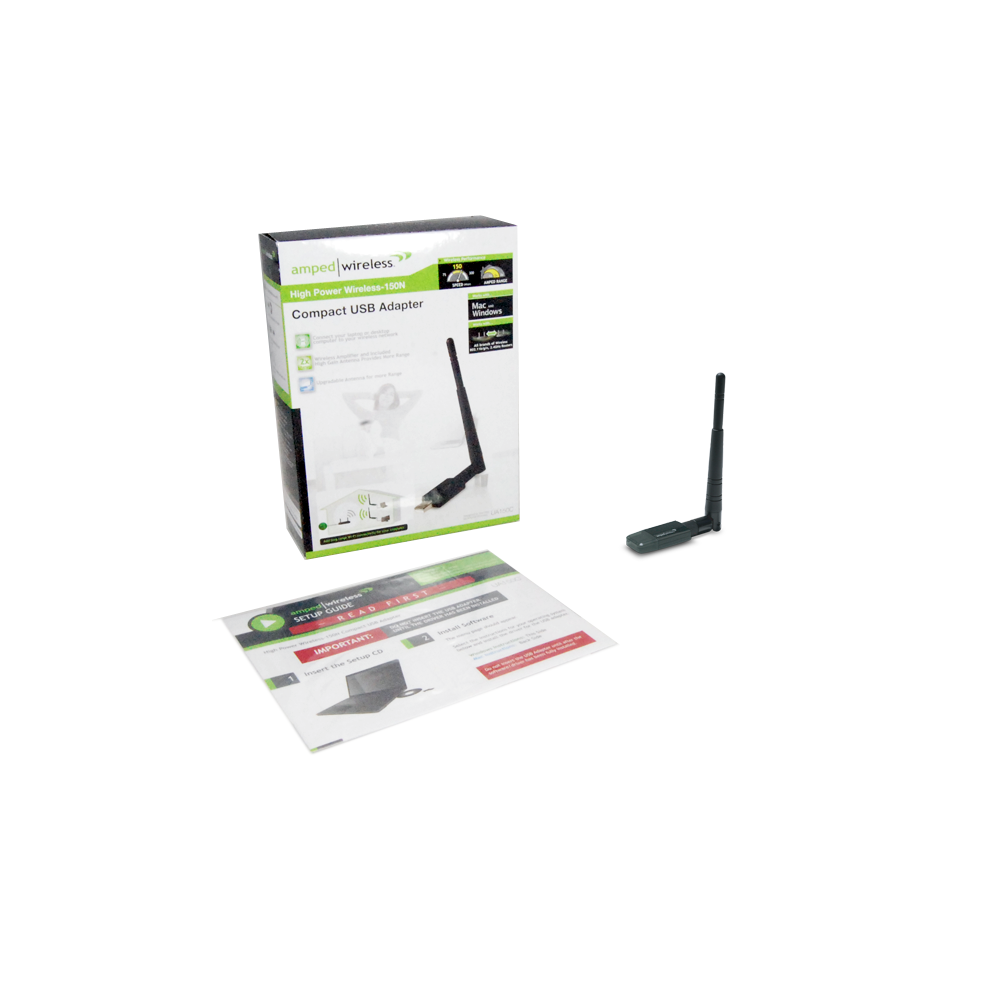

1 x High Power Wireless-150N Compact USB Adapter 1 x Upgradable High Gain 3dBi Antenna 1 x Quick Installation Guide 1 x CD: User's Guide and Software
Specifications are subject to change without notice. * Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices.
