The Amped Wireless High Power 802.11ac Wi-Fi USB Adapter allows your Mac or Windows computer to connect to Wi-Fi networks from extreme distances and with blazing speed. The UA230A is a high performance Wi-Fi network adapter that features high power amplifiers and a high gain dual band antenna to achieve up to two times the range of standard Wi-Fi adapters. It connects to your PC's USB port and features AC600 Wi-Fi technology to provide unprecedented Wi-Fi connection speeds. These speeds can move up to 150Mbps for 2.4GHz networks and up to 433Mbps for 5GHz connections. The UA230A allows you to stream HD content, download large files, and surf the web faster than ever before and with more range than you could have ever imagined. With its minimal and compact design, this Adapter is the perfect travel companion. It is both light and small, so just throw it in your carry-on and be on your way. Change the way you experience both at home and on-the-road Wi-Fi with the UA230A.
More Wi-Fi Range and Speed
Connect to any Wi-Fi network with ultra-fast AC speeds
Get stronger and more reliable connections to public Wi-Fi hotspots
Take it on-the-go for better Wi-Fi connections while traveling
Key Features
Extreme Wi-Fi Range
High power amplifiers and a high gain antenna provide maximum range
Ultra-Fast AC Wi-Fi Technology
Supports next gen 802.11ac Wi-Fi for the fastest Wi-Fi data transfer speeds
Compact Design
Works with most Mac and Windows operating systems
Detachable High Gain Antenna
Achieve extreme range with your Wi-Fi device
Simple Setup
Install the Adapter in minutes with our quick and simple setup
Supports Mac & Windows
Works with most Mac and Windows operating systems

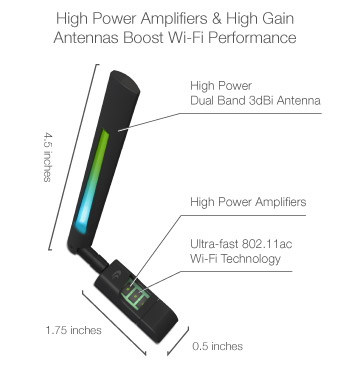

Amped Technology
Easy Setup

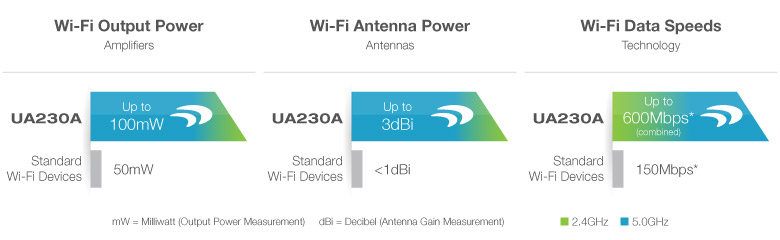

The Amped Wireless Difference
The UA230A High Power 802.11ac Wi-Fi USB Adapter:
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC600 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Insert the CD into your CD drive (or DVD) and click on Start, then My Computer. Find your CD or DVD drive and right click it, select explore or open. Find the autoload.exe file and double click it to access the CD menu.
Check to see that your CD-drive is working correctly by inserting another disk first then retry the Amped Wireless installation disk.
Insert the CD into your CD drive (or DVD) and click on the CD icon that appears on your desktop (normally on the upper right corner). Find the file titled START HERE and click it. The menu should appear.
Check to see that your CD-drive is working correctly by inserting another disk first then retry the Amped Wireless installation disk.
The wireless adapter may be out of range. Double check that the antenna is secured tightly to the adapter and scan for wireless networks again.
Verify that the adapter is firmly inserted into your USB drive and try to scan for networks again.
Check to see that the wireless network you are connecting to is functioning correctly. If possible, locate your wireless router and see that the wireless LED is blinking correctly. If not, check the connection and configuration of your wireless router.
Mac Solution: You may need to activate your wireless adapter. Click the Apple icon, select System Preferences, and then click on Network. Highlight the adapter titled Ethernet Adaptor (en#) for OS X 10.5 and below and click Advanced, then click Apply. For OS X 10.6, select the adapter titled Amped Adapter and click Apply. Try to scan for networks again.
Windows Solution: The wireless adapter may be disabled. Go to the Start menu, select Control Panel. Then select Device Manager and locate the Amped Wireless adapter under the Network Adapters category. Right click the Amped Wireless adapter and check to see if it is disabled. If disabled, enable the adapter and try to scan for networks again. If there is a problem with the driver, it will also be displayed here. Check solution (f) to solve this issue.
Uninstall the software by clicking Start, then select Control Panel, then select Programs. Find the Amped Wireless program and uninstall it. Once fully uninstalled, remove the adapter from your USB port, reinstall the Amped Wireless software using the supplied instructions and try again.
If the LED is not on, this means the adapter does not have power or is installed incorrectly. Verify that the adapter is firmly inserted into your USB drive and try to scan for networks again.
Unplug the USB adapter from the USB port and plug it back in firmly. Re-scan for wireless networks.
Mac Solution: You may need to activate your wireless adapter. Click the Apple icon, select System Preferences, and then click on Network. Highlight the adapter titled Ethernet Adaptor (en#) for OS X 10.5 and below and click Advanced, then click Apply. For OS X 10.6, select the adapter titled Amped Adapter and click Apply. Try to scan for networks again.
Windows Solution: The wireless adapter may be disabled. Go to the Start menu, select Control Panel. Then select Device Manager and locate the Amped Wireless adapter under the Network Adapters category. Right click the Amped Wireless adapter and check to see if it is disabled. If disabled, enable the adapter and try to scan for networks again. If there is a problem with the driver, it will also be displayed here. Check solution (e) to solve this issue.
Uninstall the software by clicking Start, then select Control Panel, then select Programs. Find the Amped Wireless program and uninstall it. Once fully uninstalled, remove the adapter from your USB port, reinstall the Amped Wireless software using the supplied instructions and try again.
You may have a mismatch in your SSID or your wireless security key. Double check the security key that you are using for your current wireless connection. Double check that the name of the SSID is the correct name of the network you are trying to connect to.
You may have an incorrect IP address assignment.
For Windows XP and 2000: Open the Amped Wireless Utility and go to the General tab. Click Renew IP.
For Windows 7 and Vista: Open the Windows wireless utility by clicking the wireless icon on the bottom right corner. Right click the wireless network that you are connected to and click Status. Click diagnose to allow Windows to reset your connection.
For Mac OS X: Open the Amped Wireless Utility and disconnect from your current network. Wait a few moments and connect again. If this does not work, unplug the USB adapter from your Mac and plug it back in. Connect to your network again and check your Internet connection.
The wireless router that you are connecting to may have lost its Internet connection. If possible, check the connection between your router and the ISP.
Log into the Web Menu for your dual-band wireless router and adjust the wireless settings. Change the wireless band to mixed mode 2.4GHz and 5GHz or 2.4GHz only
You may be far from your wireless router. Try moving closer and checking your speeds again. Wireless speed degrades as you move further away from the wireless router.
The wireless router you are connected to may not support 802.11ac speeds. Check the speed of your wireless router. Make sure it is an 802.11ac router.
The wireless router may not be configured for full 802.11ac speeds. Check the current wireless settings on your router to ensure that it is in 802.11ac mode.
There may be many wireless users on your network. Check that your wireless network is not congested with wireless users.
Users on your wireless network may be utilizing the available bandwidth. Other users may be using data intensive applications such as media streaming, downloading large files and gaming.
If you have an original wireless adapter or Ethernet adapter that may be causing problems with your wireless connection or making your wireless connection slow. To disable it:
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn AirPort Off.
You may be far from your wireless router. Try moving closer and checking your signal strength again. Wireless signal strength degrades as you move further away from the wireless router.
Your wireless environment, home or office may have objects that cause wireless interference. Obstructions such as walls, metal appliances, microwaves among other things may cause wireless signal strength to degrade. Try to use the wireless adapter and your wireless router away from these objects.
The channel of your wireless network may be congested. Change the channel of your wireless network by configuring the settings on your wireless router.
If you have an original wireless adapter or Ethernet adapter that may be causing problems with your wireless connection or making your wireless connection slow. To disable it:
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn AirPort Off.
For Windows XP and 2000: Open the Amped Wireless Utility and go to the General tab. Click Renew IP.
For Windows 7 and Vista: Open the Windows wireless utility by clicking the wireless icon on the bottom right corner. Right click the wireless network that you are connected to and click Status. Click diagnose to allow Windows to reset your connection.
If you feel that your original wireless adapter or Ethernet adapter is causing problems with your wireless connection or making your wireless connection slow you may need to disable your original adapter.
Windows: Click Start, then Control Panel, then Device Manager. Under Network Adapters locate your original wireless or wired adapter (not the Amped Wireless adapter). Right click the adapter and select disable.
Mac: Click on the wireless icon in the top right corner of your desktop. Select Turn AirPort Off.
The wireless adapter supports WPS connections, however, some companies may use proprietary code for their own push button configurations. Try connecting using the Windows wireless utility or Mac wireless utility instead.

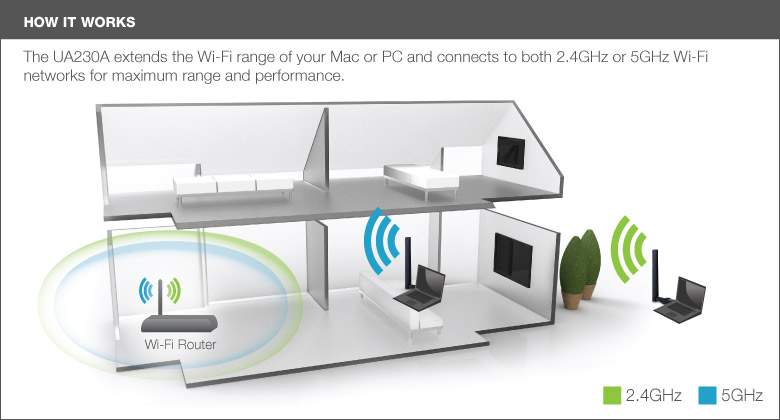

Whether you're using a Mac or Windows laptop or desktop PC, the UA230A attaches to an available USB port on your computer and provides long range, dual band 2.4GHz and 5GHz 802.11ac Wi-Fi connectivity. Allowing you to connect to any Wi-Fi network at up to 2X the range that you could before.

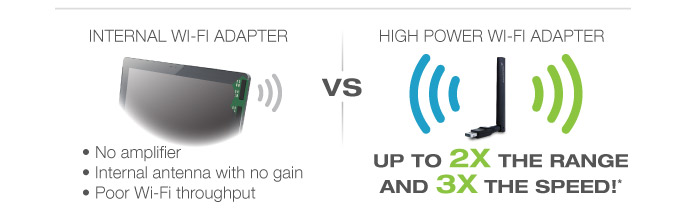

High Power, Advanced Technology Means More Range
A high power, dual band amplifier, a low noise amplifier and an advanced high gain, dual band, external antenna make up the Adapter. These high power parts are finely tuned to deliver unprecedented range.
Ultra-Fast AC Wi-Fi Technology
Next generation 802.11ac Wi-Fi technology provides Wi-Fi speeds up to three times faster than 802.11n. Perfect for HD video streaming and large data files. AC600 Wi-Fi speeds provide up to 150Mbps 2.4GHz connections or up to 433Mbps 5GHz connections.*
Easy Setup
Setup is quick and easy, you'll be up and running in just three quick steps. Insert the installation CD, install the software, plug in the Adapter and connect to a Wi-Fi network.
Universally Compatible (Works with Macs and PCs)
The High Power Adapter is compatible with both Mac and Windows PC computers, you just need a USB port. The Adapter can connect to any Wi-Fi router, regardless of brand and is backward compatible with all previous Wi-Fi standards.
Sleek, Compact, and Travel Friendly
With the unobtrusive and slick design, the Adapter can be mounted directly into any laptop or PC's USB port without cables and additional pieces to keep track of. This Adapter is the perfect companion for the personal or business traveler.
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC600 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Add long range, ultra-fast 802.11ac Wi-Fi connectivity to your Mac or Windows PC
Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.
1 x High Gain Dual Band 3dBi Antenna 1 x RJ-SMA Antenna Connector
Interface:
USB 2.0
Warranty:
1 Year
System Requirements:
Wireless 802.11a/b/g/n or ac 2.4GHz or 5GHz Network Windows® XP, Vista, 7, or 8 Mac OS X 10.4 to 10.8 CD/DVD drive 100MB of free disk space One available USB port
Package Contents:
1 x High Power 802.11ac Wi-Fi USB Adapter 1 x Detachable High Gain Dual Band Antenna 1 x Setup Guide 1 x CD: User’s Guide and Software
Specifications are subject to change without notice. * Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices.
